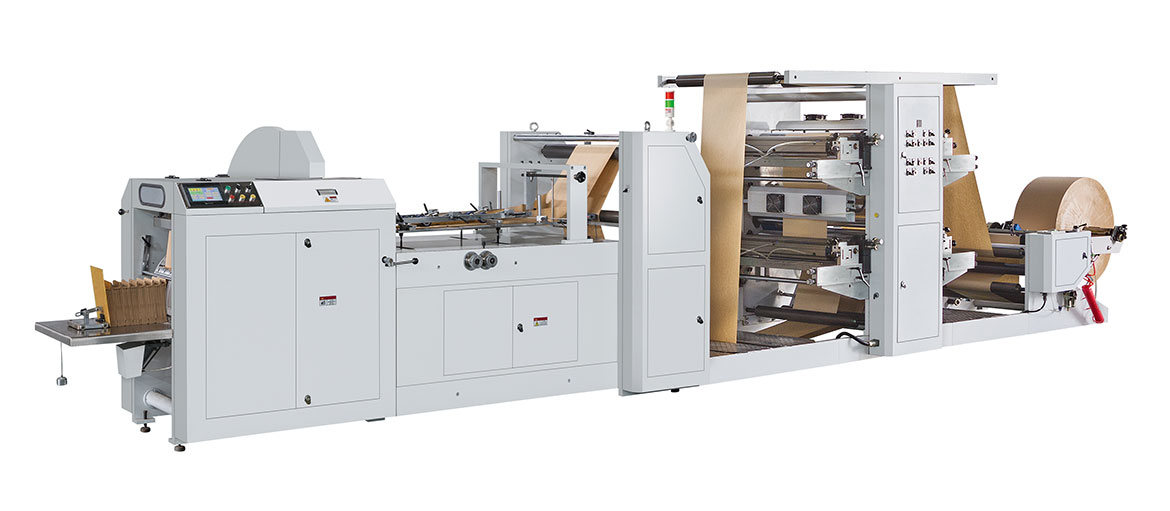

LMD-400+LST-4700R Kraft Paper Bag Making Machine with Printing inline

Working Flow Chart - Unwinder paper rolls feeding -epc -auto tension -printing 2-4-6 colors -Side Glue -Photocell-Forming tube-Gusset -Pulling paper -Cutting -V shape forming -Bottom glue -Finished v bottom paper bags

This machine forming the paper bag in one process from roll paper, printing, edge folding, tube forming, cutting, gluing, bot

Introduction：

This machine forming the paper bag in one process from roll paper, printing, edge folding, tube forming, cutting, gluing, bottom folding,bottom gluing and finishing bag Easy operation, low power consumption, high efficiency. It is an ideal machine for producing food bags like bread bags, KFC bags and Mcdonald’s bags.

Features：

1.The human-machine touch screen interface, the work condition can be shown in real- time.
2.Equipped with accurate servo motor drive, it makes the machine run steadily and efficiently.
3.Material lifting adopt pneumatic lift structure.
4.Double photoelectric sensor limit automatic correction control system and deviation rectification stability, energy saving, long life.
5.The machine has automatic counting system. The user can set a number to count.
6.Accurate color tracking system, color errors automatically shut down.
7.Lift and lower the printing plate cylinder Automatic, it will automatically stir the printing ink after lifting.
8.the independent group automatic ink system, can be opened one or more sets of ink.
9.button-360 ° continuous and adjustable longitudinal register device.

Paper bag structure

Technical Parameter：

Type	LMD-400+LST-4700R
Cutting Length（C）	150-460 mm
Bag Length（L）	140-450mm
Bag Width（W）	70-280 mm
Gusset Thickness（H）	0-120 mm
Standard Flap（P）	12-20 mm
Max.Speed	500 pcs/min
Paper Thickness	30-80 gsm
Paper Roll Width	220-700 mm
Max.Roll Diameter	1100 mm
Reel Inner Diameter	76 mm
Printing Color	4 Color
Printing Width	700 mm
Printing Length	180-800 mm
Max.Printing Speed	80 m/min
Overprint Precision	±0.15 mm
Thickness of Plate	1.7 mm
Total Power	7.5kw
Weight of Machine	5500 kg
Overall Dimension(LxWxH)	8520×1550×1850 mm

Note：
Machine speeds dependent on paper & adhesive qualities, bag dimensions, operator knowledge, and general work philosophy.

Detailing Description

Man-machine interface touch screen
Adopt touch screen and PLC programmable control system, the work condition can be shown real time. Cooperate with the ultra precise double servo motor, the stability can be guaranteed.

Servo control system
Adopt Japanese original Yaskawa servo control system to realize high-speed and precise operation control.

Independent glue coating system
Independent glue coating system, the glue coating system can be run independently after the machine stops, avoiding the glue drying and not easy to clean. The glue tank is glued to the bottom to prevent glue from dripping.

The paper tube forming system
The integral tube forming adjustment structure can be adjusted at the same time on one side or both sides to improve work efficiency, reduce the scrap rate generated by the adjustment process, and save adjustment time and stability of adjustment.

360 ° continuous and adjustable longitudinal register device
Button-type 360°continuously adjustable longitudinal register device, equipped with a large speed ratio gear motor, makes registering easier and simpler. 360°longitudinal position registering can be easily done at the touch of a button.

Independent group automatic ink system
Independent group automatic ink system, avoid stopping too long after drying of the ink roller outlets blocked, affecting print quality, ink system will automatically turn on when the machine stops, can be opened one or more sets of ink
